Rough Terrain Scissor Lift HS1623RT

Rough terrain scissor lifts offer competitive lift speed and large platforms to increase efficiency with the handling and capacity to get to the jobsite and finish working faster. They’re the perfect machines for big outdoor jobs where platform workspace is critical.


Platform Capacity

680kg

Max. Working Height

17.95m / 58.89 Ft.

PRODUCT HIGHLIGHTS

1. Strong off-road performance.

2. Rough terrain tyre, large ground clearance,

3. stronger passability.

4. Engine drive, more powerful.

PRODUCT PARAMETERS

Configurations

Standard

Automatic Braking, Proportional Control, Emergency Descent, Emergency Stop, Extension Platform, Folding Guardrails, Motion Alarm, Hour Meter, Platform Self-lock Door, Self-diagnosis, Flashing Beacons, Tilt Sensor, Safety Arm, Outriggers, Horn

Optional

Working Lamp on the Platform, Load Sensing System, AC Power to the Platform, Air Pipe to the Platform


l  Models

HS1623RT

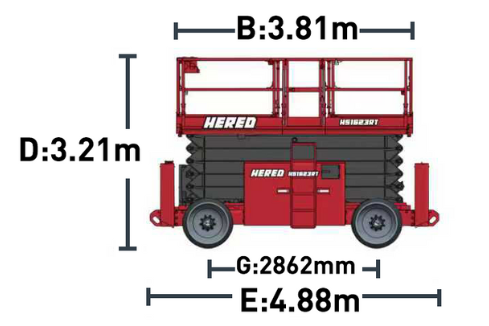

Measurements

Max. Working Height

17.95m

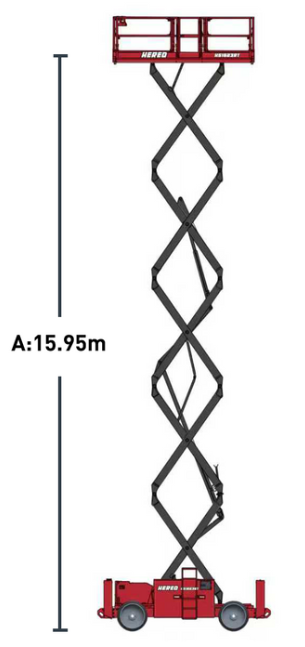

A-Max. Platform Height

15.95m

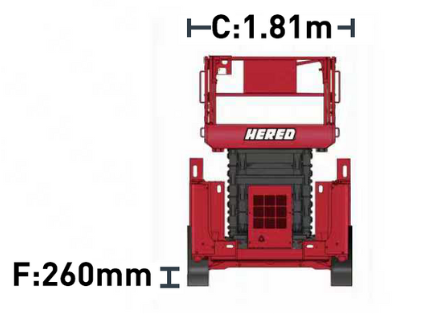

Platform Dimension (B×C)

3.81m×1.83m

Front Platform Extension Length

1.536m

Rear Platform Extension Length

1.231m

D-Overall Heights (Rails Up)

3.21m

Overall Height (Rails Folded)

2.44m

E-Overall Length (with Ladder)

4.88m

Overall Width with Outriggers

2.29m

G-Wheel Base

2862mm

H-Ground Clearance

260mm

Productivity

Platform Capacity

680kg

Extension Capacity

230kg

Max. Occupancy (Indoor/Outdoor)

4 / 4

Max. allowed wind speed

12.5m/s

Drive Height

8.5m

Drive Speed (Stowed)

6.1km/h

Drive Speed (Raised)

1.1km/h

Turning Radius (Out.)

3.9m

Up/Down Time

55/65s

Gradeability

40%

Tilt Rating (Front to Rear/Side to   Side)

3°/2°

Max Outrigger Leveling (Front to Rear)

Max Outrigger Leveling (Side to Side)

12°

Tires

Tires Size (mm)

33×12-20

Power

Hydraulic Oil Tank Capacity

120L

Fuel Tank Capacity

120L

Batteries (V/Ah)

Kubota, V2403

Drive Type

FWD

Weight

Weight

7980kg
