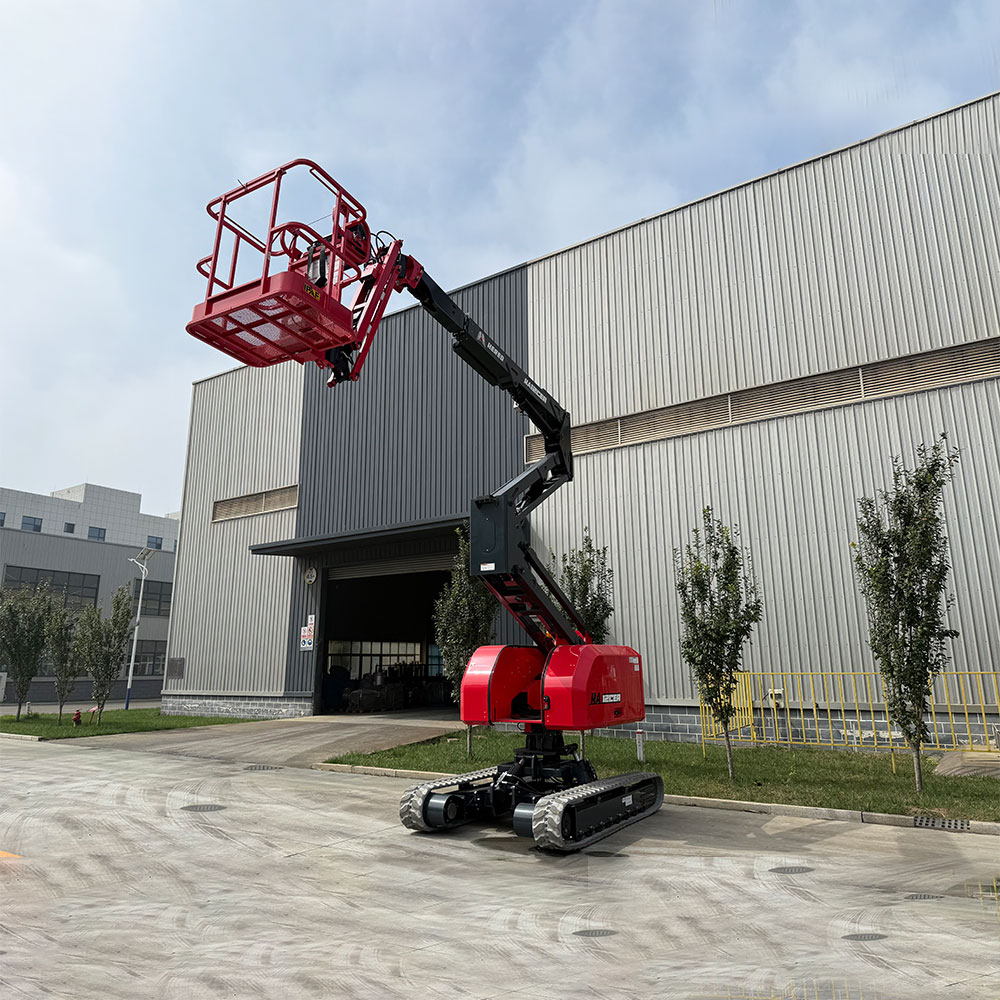

Articulating boom lifts provide the ability to lift up, over and out with precise positioning for ultimate versatility in hard-to-access work areas. With a towering height of 14.6 meters, this 14.6 meters electric articulating boom lift provides unparalleled access to high ceilings, rooftops, and other challenging areas. Equipped with advanced technology and sturdy construction, the 14.6 meters Electric Boom Lift from Hered ensures a stable and secure aerial platform for various industries such as construction, maintenance, and facilities management.
Platform Capacity
200 KG
Max. Working Height
14.6 meters
HIGHLIGHTS
● Environmental friendliness, low noise, zero emission, and maintenance-free large-capacity lithium batteries.
● Precise and efficient AC drive system for strong power and smooth control.
● Smooth and efficient compound boom actions from fully electric proportional control.

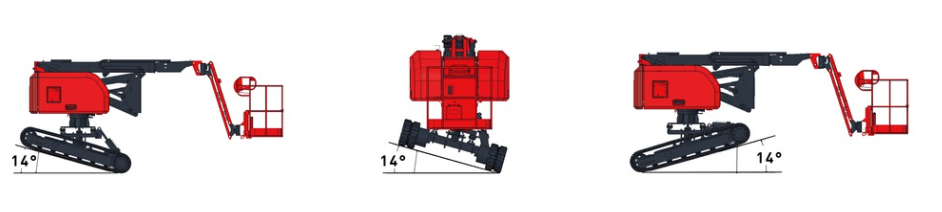

● Fully automatic or manual chassis leveling achievable during travel; chassis leveling actions done with real-time load flow distribution system for increased operation smoothness.
● Remote control within 200 m.
● Detachable tray on bottom of lithium battery for easy battery replacement.
● Smoother slew ensured by integrated slewing reducer; comprehensive protections suitable for dusty environments.
PRODUCT PARAMETERS
FEATURES Standard
------------------
Automatic Leveling Platform
Auto leveling chassis
Flashing Beacons
platform self-lock door
Horn
Color Display
Fault Diagnosis System
Emergency Decent System
Motion Alarm
Emergency Stop
Remote control
Lithium Battery
Optional
----------
AC Power to the Platform
Air Pipe to the Platform
Model | HA12CEA |
Measurements | |
Max. Working Height | 14.6m |
Max. Platform Height | 12.6m |
Max. Horizontal Reach | 6.82m |
Max. Up and Over | 6.79m |

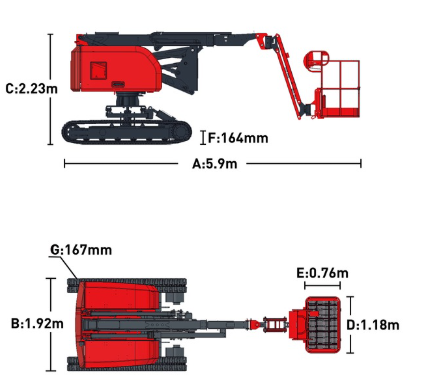

A-Length (Stowed) | 5.9m |
B-Width (Stowed) | 1.92m |
C-Heights (Stowed) | 2.23m |
D-Platform Length | 1.18m |
E-Platform Width | 0.76m |
F-Wheel Base | 164mm |
PERFORMANCE | |
Platform Capacity | 200kg |
Max.Drive Speed (Stowed) | 1.3km/h |
Gradeability | 45% |
Turning Radius | Rotate in Place |
Turntable Rotation | 355° Non-Continuous |
Vertical JIB rotation | ±90° |
Platform Rotation | ±90° |
Tail Swing | 167mm |
Tilt Rating | 3° |
Max. Wind Speed | 12.5m/s |
Chassis leveling angle (front and rear) | 15.6° |
Chassis leveling angle (left and right) | 15.6° |
Power | |
Batteries (V/Ah) | 48V/304Ah |
Charger | 100-240VAC/16A |
Crawler | 300x52.5x104 |
Drive Motor | AC48V/5KW |
Lift Motor | AC48V/5KW |
Hydraulic Oil Tank Capacity | 54L |
Weight | |
Weight | 5250kg |
