Scissor Lift is exceptionally mobile, letting operators easily maneuver around tight indoor and outdoor worksites with firm, level surfaces. Characterized by low noise levels, Mobile Lift Platform provides excellent capacity and large platform workspace.
Platform Capacity
320kg
Max. Working Platform Height
13.8m / 45.27 Ft.
PRODUCT HIGHLIGHTS
1. Optimized matching, high cycle times, better endurance.
2. Precise control greatly improves the smoothness of operating.
3. Large ground clearance, stronger passability.
1. Universal and modular design, easy maintenance.
2. Swing out trays of batteries and hydraulic system.
3. More durable, stable and safe.
PRODUCT PARAMETERS
Folding Guardrails, Emergency Stop, Hour Meter, Flashing Beacon, Self-diagnosis, Extension Platform, Safety Arm, Charging Protection, Proportional Control, Platform Self-lock Door, Pothole Protector , Automatic Braking System, Motion Alarm, Emergency Descent, Full Height Drive, Tilt Sensor, Forklift Hole, Horn
Load Sensing System, AC Power to the Platform, Air Pipe to the Platform
Models | HS1212H |
Measurements | |
Max. Working Height(In/out) | 13.8m/9.5m |

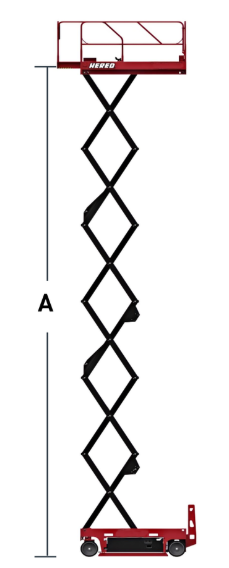

A-Max. Platform Height(In/out) | 11.8m/7.5m |

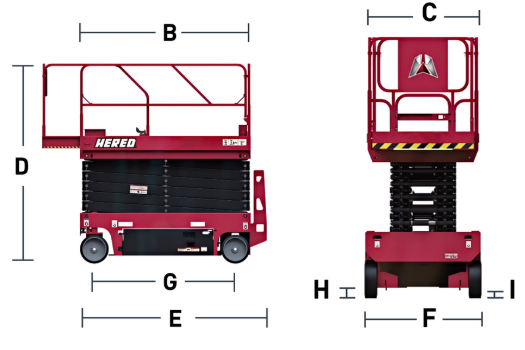

B-Platform Length | 2.26m |
C-Platform Width | 1.12m |
Extension Size | 0.9m |
D-Heights (Rails Up) | 2.62m |
Height (Rails Down) | 2.09m |
E-Length (with Ladder) | 2.49m |
F-Overall Width | 1.19m |
G-Wheel Base | 1.87m |
H-Clearance (Stowed) | 0.1m |
I-Clearance (Raised) | 0.02m |
PERFORMANCE | |
Platform Capacity | 320kg |
Extension Capacity | 113kg |
Max. Occupancy(in/out) | 2 / 1 |
Drive Speed (Stowed) | 3.5km/h |
Drive Speed (Raised) | 0.8m/h |
Max.Wind Speed | 12.5m/s |
Turning Radius (Out.) | 2.3m |
Up/Down Time | 65/60s |
Gradeability | 25% |
Max. Slope | 1.5°/3° |
Control | proportional |
Drive | FWD |
Multi Disc Brake | Rear |
Tires (mm) | 381×127 |
Power | |
Batteries (V/Ah) | 4×12/200 |
Charger | 100-240VAC/10A |
Weight | |
Weight | 3020kg |
