Hydraulic Scissor Lift HS0808H

Scissor Lift is exceptionally mobile, letting operators easily maneuver around tight indoor and outdoor worksites with firm, level surfaces. Characterized by low noise levels, scissor lifts provide excellent capacity and large platform workspace.

Platform Capacity

230kg

Max. Working Height

9.9m

Inquire Now

Configurations

Standard

Folding Guardrails, Emergency Stop, Hour Meter, Flashing Beacon, Self-diagnosis, Extension Platform, Safety Arm, Charging Protection, Proportional Control, Platform Self-lock Door, Pothole Protector , Automatic Braking System, Motion Alarm, Emergency Descent, Full Height Drive, Tilt Sensor, Forklift Hole, Horn

Optional

Load Sensing System, AC Power to the Platform, Air Pipe to the Platform

MODEL	HS0808H
Max. Working Height(In/out)	9.9m/8m

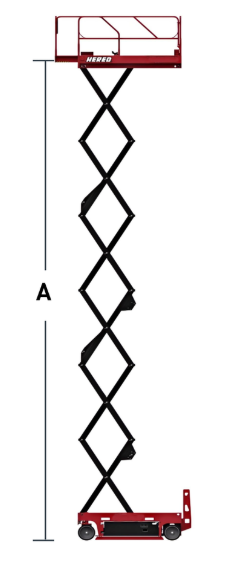

A-Max. Platform Height(In/out)	7.9m/6m

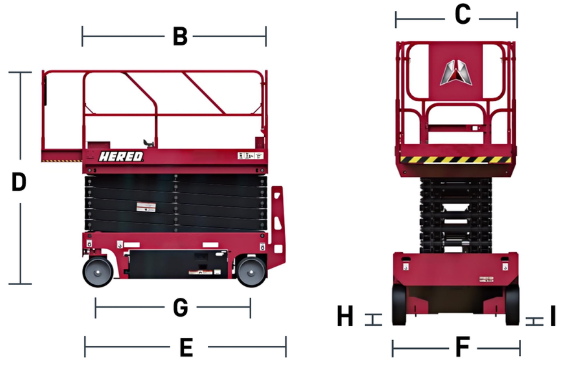

B-Platform Length	2.26m
C-Platform Width	0.81m
Extension Size	0.9m
D-Heights (Rails Up)	2.36m
Height (Rails Down)	1.96m
E-Length (with Ladder)	2.43m
F-Overall Width	0.81m
G-Wheel Base	1.87m
H-Clearance (Stowed)	0.1m
I-Clearance (Raised)	0.02m
PERFORMANCE
Platform Capacity	230kg
Extension Capacity	113kg
Max. Occupancy(in/out)	2/1
Max.Drive Speed (Stowed)	3.5km/h
Drive Speed (Raised)	0.8km/h
Turning Radius (Out.)	2.1m
Up/Down Time	31/40s
Gradeability	0.25
Max. Slope	1.5°/3°
Control	Proportional
Drive	FWD
Multi Disc Brake	Rear
Tires (mm)	381mmX127mm
Max.Wind Speed	12.5m/s
POWER
Batteries (V/Ah)	24V/200Ah
Charger	100-240VAC/10A
WEIGHT
Weight	2240kg
