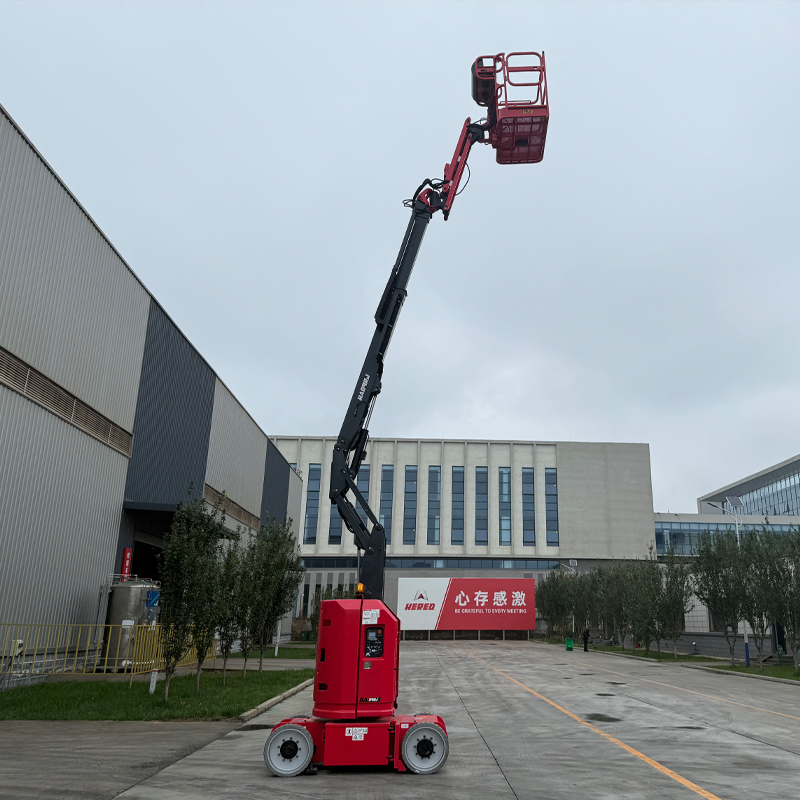

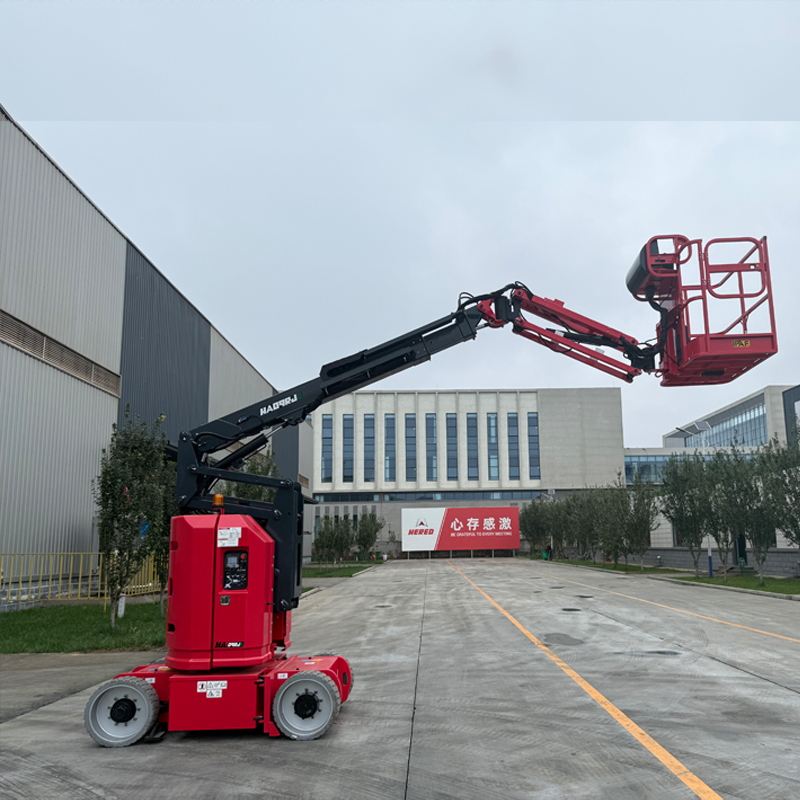

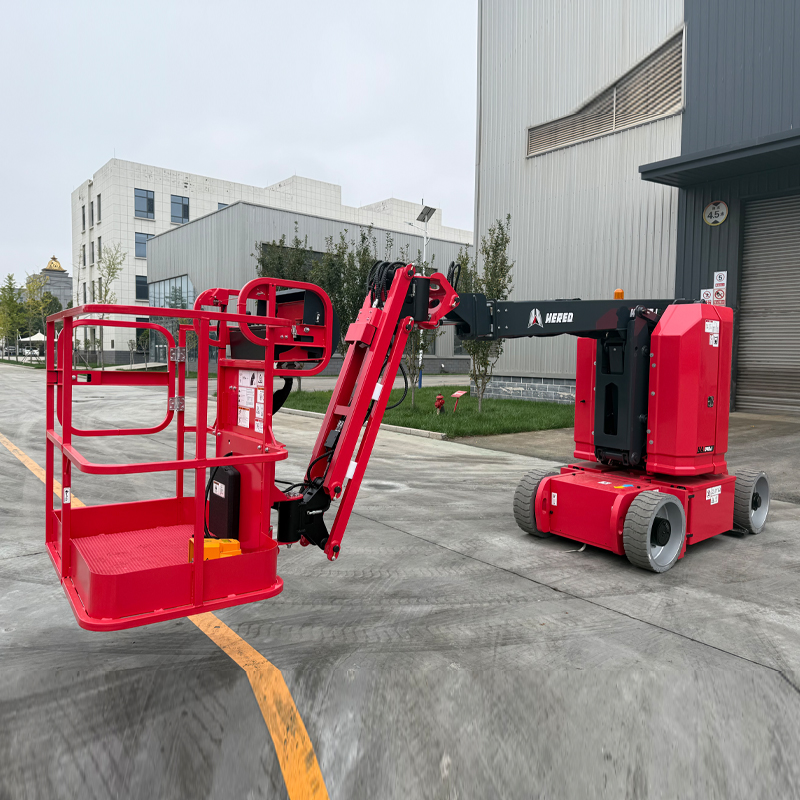

Electric Articulating Boom Lift HA09RJE
Electric Articulating Boom Lift
8.82 meters 230KG Electric Articulating Boom Lift

Electric Articulating Boom Lift HA09RJE

Electric Articulating Boom Lift, indoor and outdoor work, suitable for various complex working conditions. 30ft Electric boom lifts from Hered are designed with advanced features that enable you to move with ease around obstacles or narrow spaces. With the ability to rotate up to 360 degrees, you can work around objects and obstacles without moving the 9m articulated boom lifts.

Platform Capacity

230kg

Max. Working Height

10.82m

Inquire Now
FEATURED PRODUCTS

  1. 1.19m ultra-narrow machine, suitable for operation in confined space.

  2. The central layout, good structural rigidity and small yaw of the boom.

  3. AC motor drive, smooth driving, good micro-motion.

  4. High-precision platform load sensing system to reduce accidental false alarm shutdown.

  5. Integrated rotary reducer ensures smooth rotation.

  6. The machine has zero emissions, smoother operation and more energy saving.

  7. The platform contactor alarm device to improve safety; the jib can swing ± 90° to cross obstacles.


PRODUCT PARAMETERS

FEATURES Standard

Horn

Emergency Stop System

Proportional Control

Fault Diagnosis System

Motion Alarm

Overload Sensing System

Flashing Beacons

AC Power to the Platform

Self-lock Gate

Jib Swing

Automatic Leveling Platform

Platform Operation Shield

Electric Emergency Pump

Anti-extrusion device


Optional

Air Tube to the Platform


MODELHA09RJE
Max.Working Height10.82m
Max. Platform Height8.82m
Max. Horizontal Extension6.29m
Max.Up and Over Height3.77m
A- Length (Stowed)5.38m
B- Width (Stowed)1.19m
C- Height (Stowed)2.04m
D- Platform Length1.17m
E- Platform Width0.76m
F-Clearance (Stowed)0.09m
G-Wheel Base1.58m
PERFORMANCE
Platform Capacity230kg
Max.Drive Speed (Stowed)4.8km/h
Gradeability0.35
Turning Radius(In.)1.75m
Turning Radius(Out.)3.35m
Turntable Rotation355°Non-Continuous
Vertical JIB rotation±90°
Platform Rotation±90°
Tail Swing0
Tilt Rating3°
Max.Wind Speed12.5m/s
POWER
Batteries(V/Ah)48V/310Ah
Charger100-240VAC/13.5A
Drive MotorAC48V
Lift MotorDC48V
Hydraulic Oil Tank Capacity15L
Tires24x7x17.5
Auxiliary powerElectric pumps
WEIGHT
Weight6900kg
