Electric Telescopic Boom Lift HT26JE
25.9 meters 300kg/450kg Electric Telescopic Boom Lift
Electric Telescopic Boom Lift

Electric Telescopic Boom Lift HT26JE

The HERED HT26JE electric telescopic boom lift has a maximum working platform height of 25.9 meters and a maximum load capacity of 450 KG. Extendable booms provide industry-leading working heights, empowering you to tackle even the most difficult tasks with ease. Zero emissions and low noise contribute to a cleaner, quieter work environment.

Platform Capacity

300kg/450kg

Max. Working Height

27.9m

Inquire Now
FEATURED PRODUCTS

  1. Eco-friendly, low noise, zero emissions, maintenance-free high-capacity lithium battery;

  2. Industry-leading platform with dual load capacities of 300KG/450KG;

  3. Precise and efficient AC drive system, powerful performance, and smooth control;

  4. Fully electric proportional control, boom can perform compound movements, smooth and efficient, boom weight reduction for energy saving and reduced consumption;

  5. Human-machine interaction interface and self-diagnostic fault system;

  6. Floating bridge design, high passability and off-road capability.

PRODUCT PARAMETERS

FEATURES Standard

---------------

Horn

Automatic Leveling Platform

Proportional Controls

Fault Diagnosis System

Motion Alarm

Overload Sensing System

Flashing Beacons

Tilt Protection System

Self-lock Gate

Oscillating axle

Emergency Descent System

Color Display

Anti-extrusion device

Emergency Stop System


Optional

-------------

AC Power to the Platform

Air Pipe to the Platform

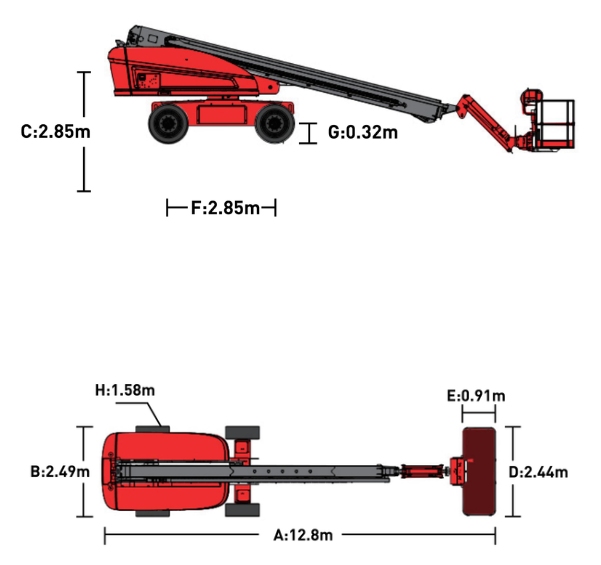

MODELHT26JE

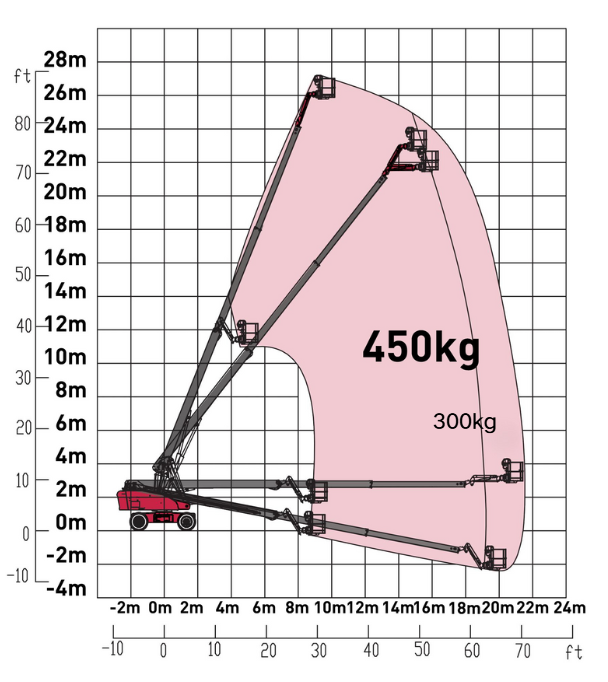

Max.Working Height27.9m
Max. Platform Height25.9m
Max. Horizontal Extension21.4m
A-Length (Stowed)12.8m
B-Width (Stowed)2.49m
C-Heights (Stowed)2.85m
D- Platform Length2.44m
E- Platform Width0.91m
F- Wheelbase2.85m
G- Ground Clearance0.32m
Wheel track2.11m
PERFORMANCE
Platform Capacity(unrestricted/restricted)300kg/450kg
Max.Drive Speed (Stowed)4.8km/h
Gradeability0.45
Turning Radius(In.)3.28m
Turning Radius(Out.)6.5m
Turntable Rotation360°Continuous
Platform Rotation160°
Vertical JIB rotation-65°to 78°
Tilt Rating5°
Operating Wind Speed12.5m/s
Tail Swing1.58m
Lift Motor24Kw
Drive Motor5.2Kw
POWER
Batteries(V/Ah)80V460AH
Charger100-240VAC/32A
Tires385/65-22.5
WEIGHT
Weight18450kg
Hydraulic Tank Capacity170L
