Rough terrain scissor lifts offer competitive lift speed and large platforms to increase efficiency with the handling and capacity to get to the jobsite and finish working faster. 22m rough terrain scissor lifts are the perfect aerial work platforms for large-scale outdoor operations where platform workspace is critical.
Platform Capacity
750kg
Max. Working Height
22 meters
PRODUCT HIGHLIGHTS
● All-terrain and all-road driving.
● Off-road tires with large ground clearance and high gradeability.
● AC motor drive, smooth driving, and excellent inching motion.
● Full-travel load capacity up to 750 kg.
● 48v/620Ah high-capacity battery pack for strong endurance
● Strong power and flexible manipulation from four-wheel drive and four-way steering.
● 2.7m platform extension for stop at any point and a large operating space.
PRODUCT PARAMETERS
Configurations
--------------
Automatic Braking System
Emergency Stop
Flashing Beacons
Proportional Control
Emergency Decent System
Folding Guardrails
Safety access support bar
Hour meter
Motion Alarm
Charging Protection System
Horn
Optional
-------------
Load Sensing System
AC Power to the Platform
Models | HS2025ERT |

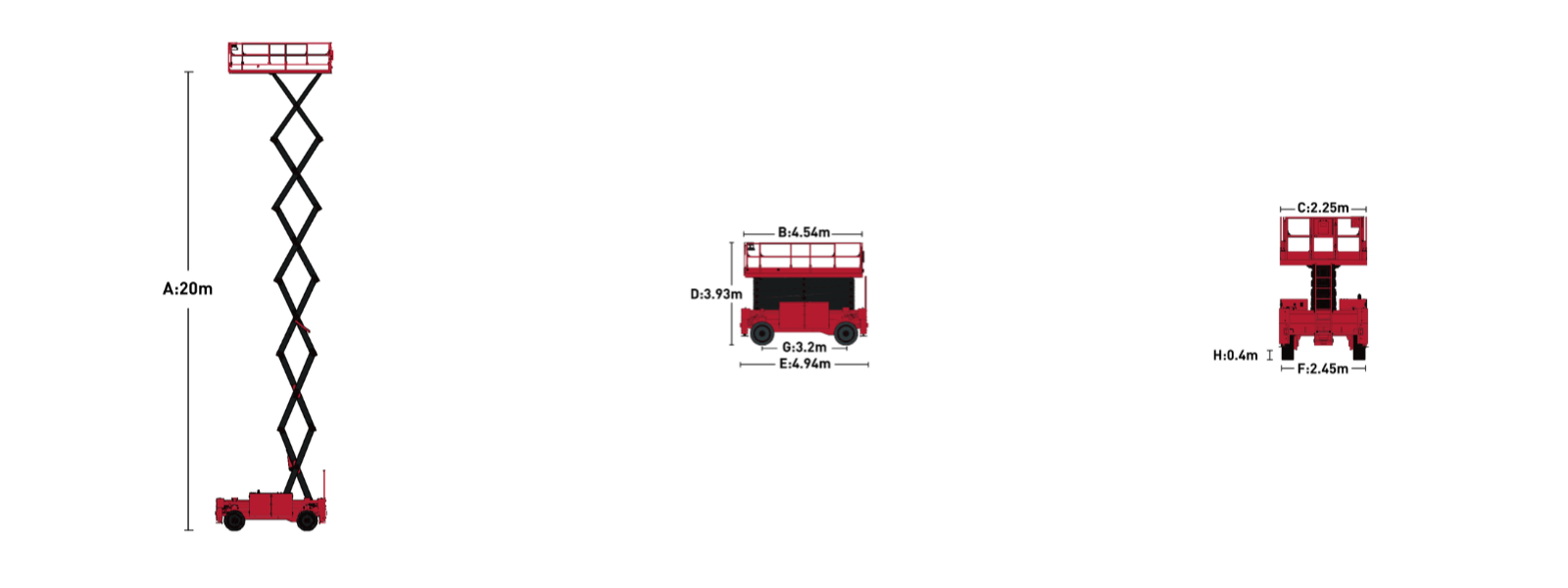

Measurements | |
Max. Working Height | 22m |

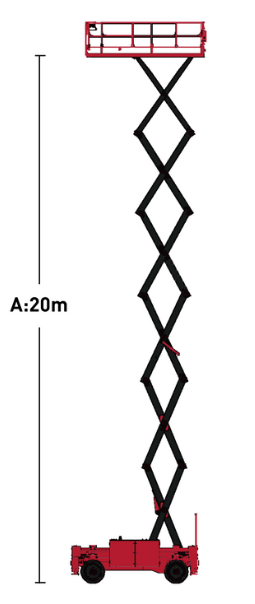

A-Max. Platform Height | 20m |
B-Platform Length | 4.54m |
C-Platform Width | 2.39m |
Extension Size | 2.7m |
D-Overall Heights (Rails Up) | 3.95m |
Overall Height (Rails Down) | 3.10m |
E-Overall Length (with Ladder) | 4.94m |
F-Overall Width | 2.47m |
G-Wheel Base | 3.2m |
H-Ground Clearance | 0.4m |
PERFORMANCE | |
Platform Capacity | 750kg |
Extension Capacity | 750kg |
Max. Occupancy (Indoor/Outdoor) | 4 / 4 |
Drive Speed (Stowed) | 5km/h |
Drive Speed (Raised) | 0.4km/h |
Turning Radius (In.) | 1.5m |
Turning Radius (Out.) | 3.4m |
Up/Down Time | 90s / 75s |
Gradeability | 30% |
Max. Slope | 2°/3° |
Control | Proportional Control |
Drive | Four-Wheel |
Multi Disc Brake | Four-Wheel |
Max. allowed wind speed | 12.5m/s |
Tires (mm) | 36X14-20 |
Power | |
Batteries (V/Ah) | 48V/620Ah |
Charger | 100-240VAC/16A |
Weight | |
Weight | 13000kg |
