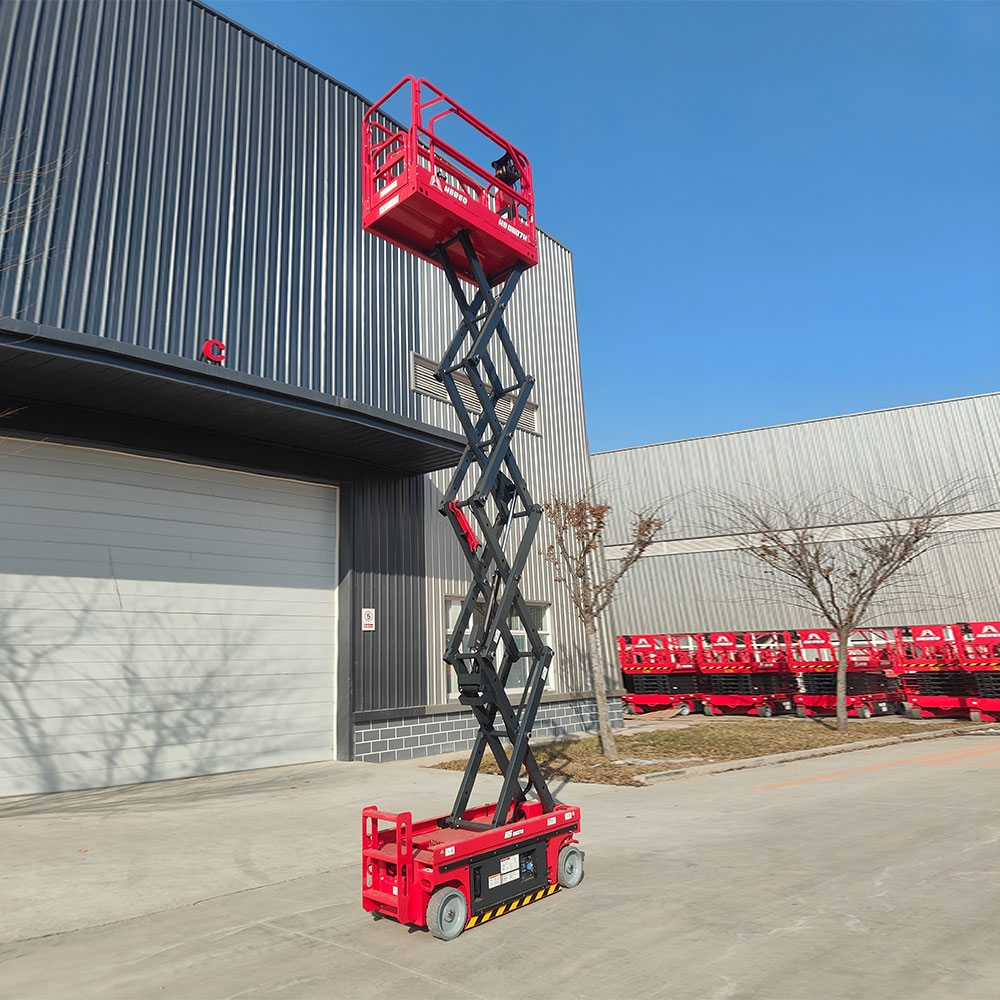

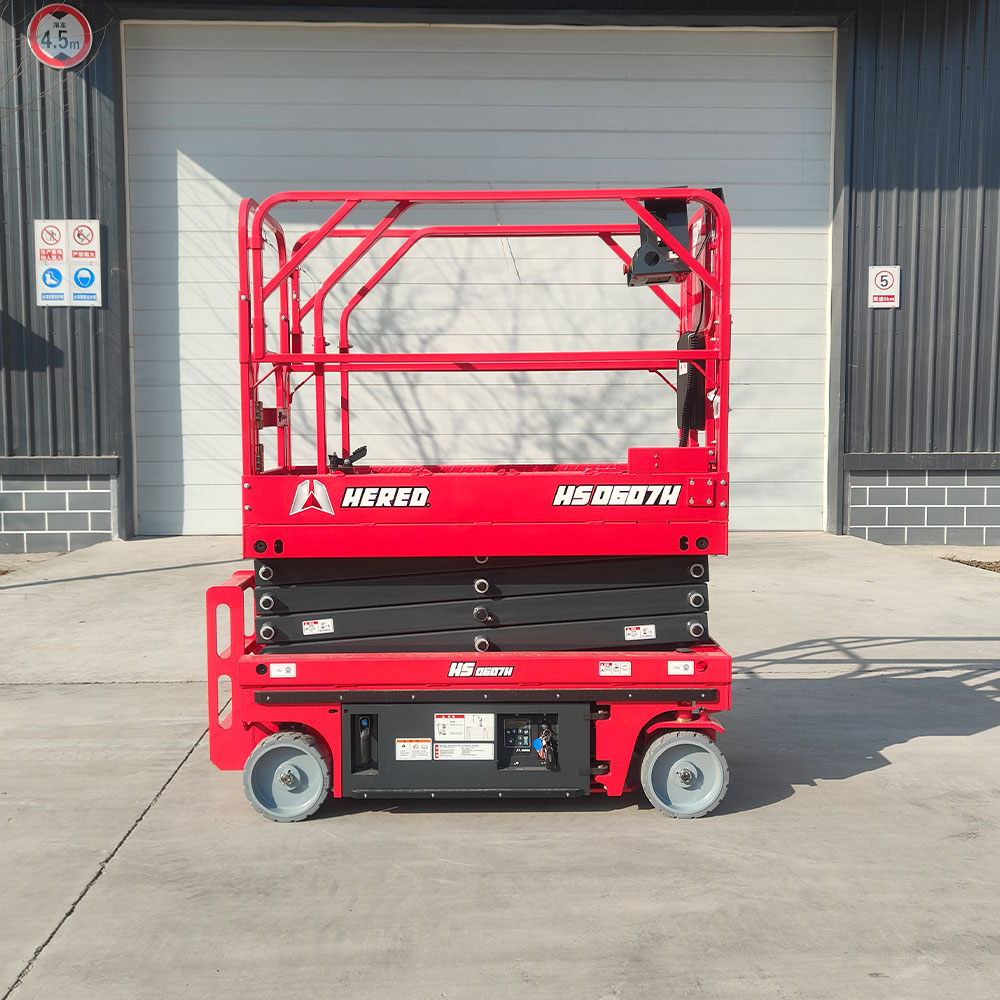

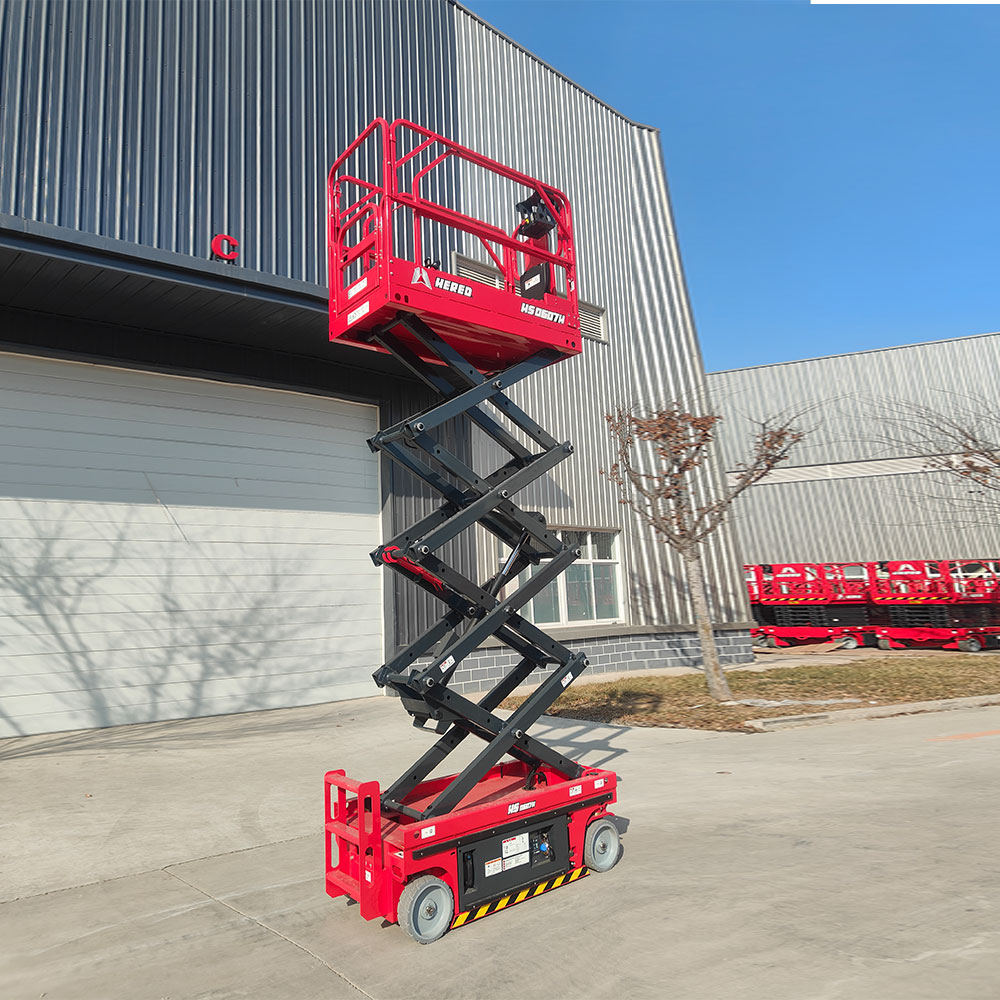

Hydraulic Scissor Lift HS0607H
Hydraulic Scissor Lift HS0607H
Hydraulic Scissor Lift HS0607H

Hydraulic Scissor Lift HS0607H

Hydraulic Mobile Scissor Lift is exceptionally mobile, letting operators easily maneuver around tight indoor and outdoor worksites with firm, level surfaces. Characterized by low noise levels, scissor lifts provide excellent capacity and large platform workspace. Expand your horizons with the unidirectional extension aerial platform. Enlarge your working range without sacrificing stability or safety. Tackle tasks that were once out of reach with newfound versatility.

Platform Capacity

230kg

Max. Working Height

7.8m

Inquire Now
FEATURED PRODUCTS

HIGHLIGHTS

Optimized matching, high cycle times, better endurance.

Precise control greatly improves the smoothness of operating.

Large ground clearance, stronger passability


Low Maintenance Cost

Universal and modular design, easy maintenance.

Swing out trays of batteries and hydraulic system.

More durable, stable and safe.


PRODUCT PARAMETERS

Configurations

Standard

Folding Guardrails, Emergency Stop, Hour Meter, Flashing Beacon, Self-diagnosis, Extension Platform, Safety Arm, Charging Protection, Proportional Control, Platform Self-lock Door, Pothole Protector , Automatic Braking System, Motion Alarm, Emergency Descent, Full Height Drive, Tilt Sensor, Forklift Hole, Horn


Optional

Load Sensing System, AC Power to the Platform, Air Pipe to the Platform

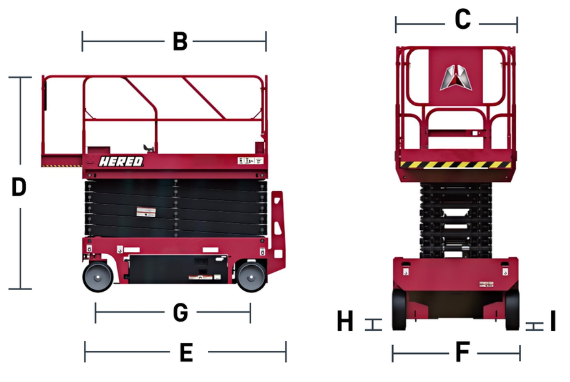

MODELHS0607H
Max. Working Height(In/out)7.8m/7m

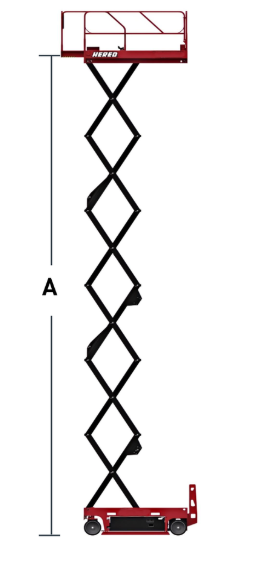

A-Max. Platform Height(In/out)5.8m/5m
B-Platform Length1.63m
C-Platform Width0.74m
Extension Size0.9m
D-Heights (Rails Up)2.17m
Height (Rails Down)1.83m
E-Length (with Ladder)1.86m
F-Overall Width0.76m
G-Wheel Base1.32m
H-Clearance (Stowed)0.06m
I-Clearance (Raised)0.02m
PERFORMANCE
Platform Capacity230kg
Extension Capacity113kg
Max. Occupancy(in/out)2/1
Max.Drive Speed (Stowed)4km/h
Drive Speed (Raised)0.8km/h
Turning Radius (Out.)1.55m
Up/Down Time16/34s
Gradeability0.25
Max. Slope1.5°/3°
ControlProportional
DriveFWD
Multi Disc BrakeRear
Tires (mm)305mmX100mm
Max.Wind Speed12.5m/s
POWER
Batteries (V/Ah)24V/200Ah
Charger100-240VAC/10A
WEIGHT
Weight1560kg
