Articulating boom lifts provide the ability to lift up, over and out with precise positioning for ultimate versatility in hard-to-access work areas. With a towering height of 14.15 meters, this 14.15 meters electric articulating boom lift provides unparalleled access to high ceilings, rooftops, and other challenging areas. Equipped with advanced technology and sturdy construction, the 14.15 meters Electric Boom Lift from Hered ensures a stable and secure aerial platform for various industries such as construction, maintenance, and facilities management.
Platform Capacity
230 KG
Max. Working Height
14.15 meters
HIGHLIGHTS
● Mid-mounted layout, good structural rigidity, and little boom swing
● AC motor drive, smooth driving, good micro-motion.
● High-precision platform load sensing system to reduce accidental false alarm shutdown.
● Smoother slew ensured by integrated slewing reducer.
● Smoother actions and more energy saving thanks to zero-emission devices
● Platform contact alarm device ensuring higher safety.
● ±90° fly jib swing to cross obstacles.
PRODUCT PARAMETERS
FEATURES Standard
-------------
Horn
Proportional Control
Motion Alarm
Flashing Beacons
platform self-lock door
Automatic Leveling Platform
Electric Emergency Pump
Emergency Stop
Fault Diagnosis System
Load Sensing System
Flying jib swing
Protective cover for platform operation
Anti-crush device
Optional
--------
Air Pipe to the Platform
AC Power to the Platform
Model | HA12RJE |
Measurements | |

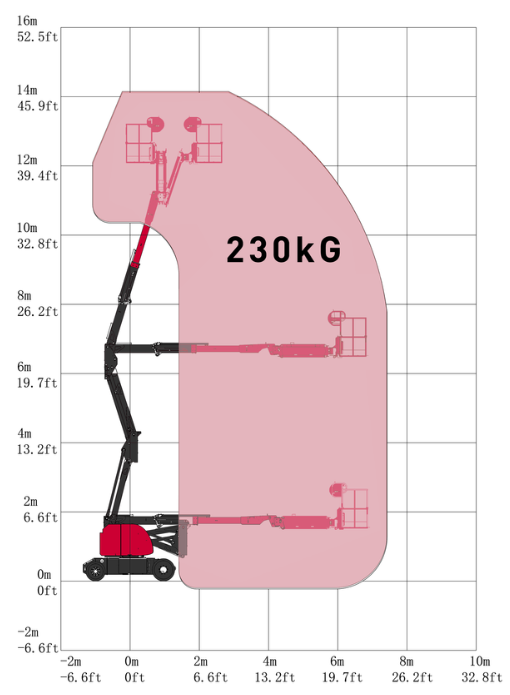

Max. Working Height | 14.15m |
Max. Platform Height | 12.15m |
Max. Horizontal Reach | 6.83m |
Max. Up and Over | 6.54m |

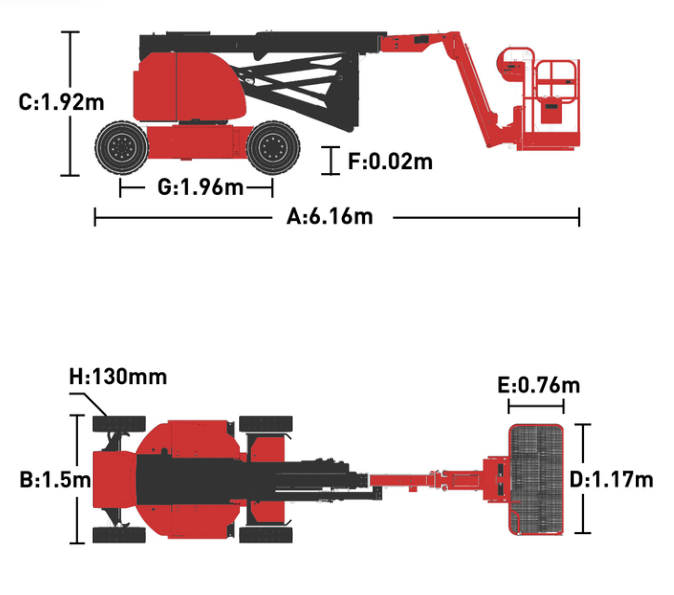

A-Length (Stowed) | 6.16m |
B-Width (Stowed) | 1.5m |
C-Heights (Stowed) | 1.92m |
D-Platform Length | 1.17m |
E-Platform Width | 0.76m |
F-Wheel Base | 1.96m |
G-Ground Clearance | 0.02m |
PERFORMANCE | |
Platform Capacity | 230kg |
Max.Drive Speed (Stowed) | 4.8km/h |
Gradeability | 30% |
Turning Radius (In.) | 0.8m |
Turning Radius (Out.) | 2.3m |
Turntable Rotation | 355° Non-Continuous |
Vertical JIB rotation | ±90° |
Platform Rotation | ±90° |
Tail Swing | 130mm |
Tilt Rating | 3° |
Max. Wind Speed | 12.5m/s |
Power | |
Batteries (V/Ah) | 48V/320Ah |
Charger | 100-240VAC/13.5A |
Tires | 22x7x17.5 / 25.6x7x21 |
Drive Motor | 3.3kw |
Lift Motor | 5kw |
Hydraulic Oil Tank Capacity | 19L |
Weight | |
Weight | 7100kg |
