22-27.6m mobile telescopic boom lifts are driven by diesel. Working at heights safely are our priority. These telescopic boom lifts are widely used in ship building and repairing, construction engineering, urban utilities, building maintenance, gardening, airports and harbours, curtain wall engineering, petrochemical industry applications and much more.
Platform Capacity
300kg/450kg
Max. Working Height
27.6m
PRODUCT HIGHLIGHTS
●Quick action response and large operation radius
●Fault self-diagnosis system, making the mobile diesel telescopic boom lift more safety
●The industry’s leading platform capacity with dual load capacity of 300kg/450kg
●Smooth telescopic boom control technology
●Equipped with integrated four-wheel drive system with axles for greater off-road performance
●Combined the engine (kubota V2403) with batteries, ensures the diesel telescopic boom lift can be used for up to 30 days on site
PRODUCT PARAMETERS
Model | HT26J |

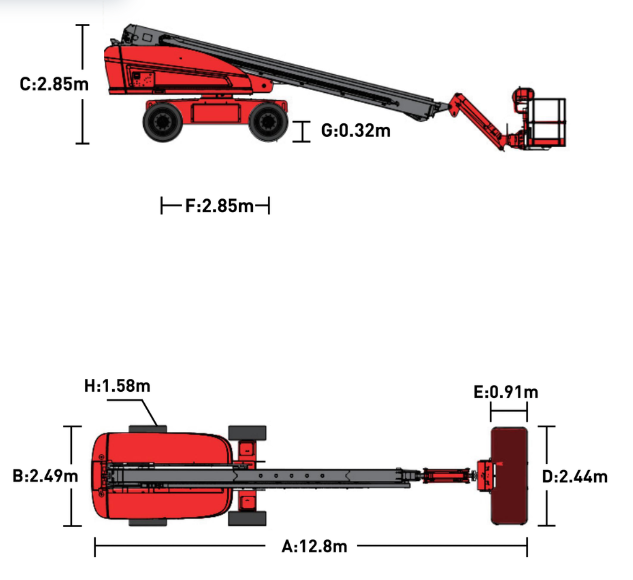

Measurements | |

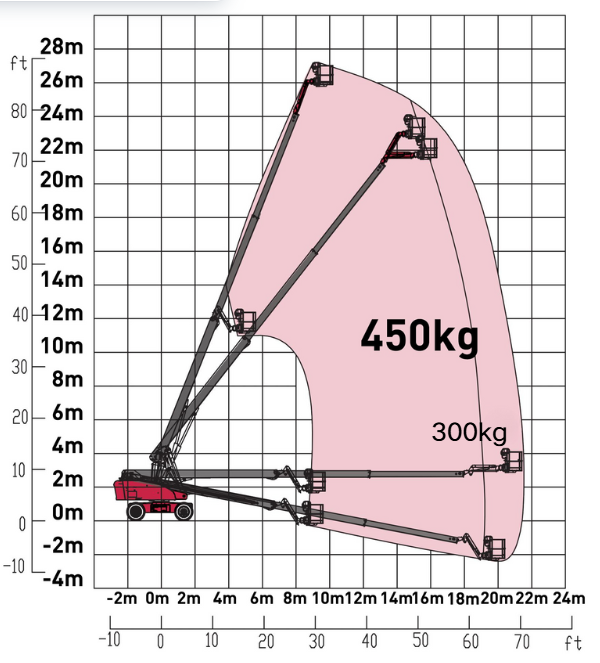

Max. Working Height | 27.6m |
Max. Platform Height | 25.9m |
Max. Horizontal Reach | 23.3m |
A-Length (Stowed) | 11.9m |
B-Width (Stowed) | 2.49m |
C-Heights (Stowed) | 2.89m |
D-Platform Length | 2.44m |
E-Platform Width | 0.91m |
F-Wheel Base | 3.05m |
Wheel Track | 2.1m |
G-Ground Clearance | 0.46m |
Productivity | |
Max. Platform Capacity (Unrestricted/Restricted) | 300kg/450kg |
Drive Speed (Stowed) | 5.4km/h |
Gradeability (Stowed) | 45% |
Turning Radius (In.) | 3.66m |
Turning Radius (Out.) | 6.55m |
Turntable Rotation | Continuous 360° |
Platform Rotation | -80°-80° |
Jib Rotation | -65°-78° |
Max. Slope | 3° |
Max. Operating Wind Speed | 12.5m/s |
Power | |
Power Source | Deutz D2011L04i |
Fuel Tank Capacity | 140L |
Control | 12V |
Hydraulic Tank Capacity | 170L |
Drive | AWD |
Steering | Front Wheels |
Tires | |
Tires | 355/55D 625-16 |
Weight | |
Weight | 17920kg |
